Hardwired vs Plug-In EV Charger: Which to Install in 2025

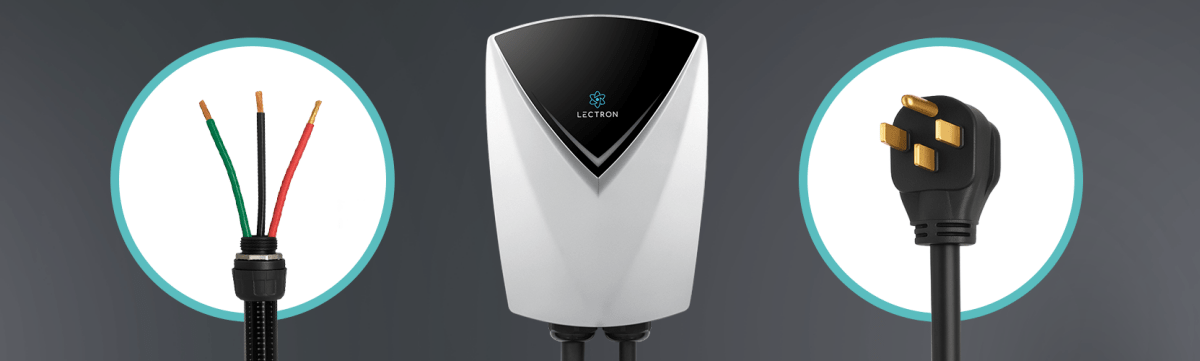

When choosing a hardwire installation, expect a more involved process. Because it’s directly tied to your home’s electrical panel and electrical breakers, this setup requires professional help to ensure compliance and safety.

What to Expect

• Dedicated Wiring: Runs straight from your main panel to the charger.

• Junction Box Setup: Connections are made securely through a junction box or disconnect switch.

• Professional Electrician Required: This is not a DIY project—the vast majority of homeowners will need expert help.

• Permanent Fixture: Once installed, the charger isn’t portable but offers unmatched stability.

Plug-In Charging Options

If you want more flexibility, a plug-in EV charger may be the better fit. These chargers connect to a NEMA outlet (commonly a NEMA 14-50), similar to those used for high-power appliances.

Advantages of Plug-In Chargers

• Flexibility: Easily moved or replaced—simply unplug and reinstall elsewhere.

• Affordable Option: Cheaper upfront if a NEMA outlet is already installed.

• Future-Proof: Upgrade to a newer charger model without rewiring.

• Versatility: Outlets can power RVs, tools, or other appliances when the charger isn’t in use.

Drawbacks of Plug-In EV Chargers

• Lower Amperage: Limited to 40 amps due to continuous load rules.

• Durability Issues: Frequent plugging and unplugging can wear out the outlet.

• Potential Safety Concerns: Risk of nuisance tripping or overheating if outlets aren’t designed for EV charging.

• Aesthetic Impact: Outlets and cords remain visible.

Electrical Panel Considerations

Before you install either type, your electrical panel must be evaluated. Both hardwired and plug-in chargers draw significant power, often associated with continuous loads so capacity and safety are critical.

Key Points

• Panel Capacity: Confirm your panel supports the additional load.

• Breaker Needs: Plug-in models often require costly GFCI breakers; hardwired setups may not.

• Continuous Load Rules: Outlets must remain below 80% capacity, capping plug-in chargers at 40 amps.

A licensed electrician can assess your panel and ensure compliance with electrical codes.

Performance and Power Delivery

When comparing hardwired vs plug-in EV chargers, performance often comes down to charging speed and amperage.

How They Compare

• Hardwired EV Chargers: Up to 48 amps, ideal for fast charging large EV batteries.

• Plug-In EV Chargers: Capped at 40 amps, good enough for daily commuting or smaller batteries.

Even a small difference in amperage can add up. For example, a hardwired charger may top up an EV in 6 hours, while a plug-in model might take 7.5 hours.

Code Compliance and Regulations

Both installation types must comply with the National Electrical Code (NEC) and local building rules.

Compliance Notes

• Hardwired Chargers: More likely to exceed code, with a secure permanent installation.

• Plug-In Chargers: May require GFCI protection, outlet covers, and clearances to pass inspection.

Skipping these measures can risk safety issues and nuisance tripping, so it’s important to hire a professional electrician for either option.

Scalability and Upgradability

EV charging needs change over time, especially if you add more electric vehicles or upgrade to models with bigger batteries.

Comparing Flexibility

• Hardwired Chargers: Can be scaled to higher amperage and integrated with multiple EV chargers, though upgrades require professional work.

• Plug-In Chargers: Easier to replace or upgrade since you can simply unplug the current charger, but limited by outlet capacity.

Think about whether you’ll own just one EV long-term or expand to multiple electric vehicles in your household.

Cost Comparison

Budget plays a big role in the hardwired vs plug-in EV charger decision.

General Cost Breakdown

• Hardwired Chargers: Professional installation usually costs $300–$700. Avoids expensive GFCI breaker requirements in many cases. Installation costs for hardwired chargers may also include permitting fees, which licensed electricians typically handle as part of the installation process. For a full step-by-step guide on comparing installation options, check out our comprehensive guide to installing an EV charger at home.

• Plug-In Chargers: If you already have a NEMA outlet, installation is inexpensive. If not, installing an outlet with proper protections can cost $400–$800.

In short:

• If you already have a NEMA outlet, plug-ins may save money.

• If you don’t, a hardwired installation might actually be more cost-effective long-term.

Our Suggestions

Choosing between a hardwired vs plug-in EV charger depends on your long-term plans, but the right hardware makes all the difference. That’s where Lectron chargers stand out. Whether you drive a Tesla or a J1772-compatible EV, Lectron offers dependable, safe, and smart charging solutions to fit your setup.

For Tesla & NACS EV Owners

• Portable Level 1 Charging (Plug-In)

  • Lectron Portable Level 1 Tesla EV Charger (Wi-Fi)

  • Great for overnight charging anywhere with a standard NEMA 5-15 outlet. Wi-Fi-enabled with app control, delivering 30–40 miles of range overnight. Portable and perfect for travel.

• Portable Level 2 Charging (Plug-In)

  • Lectron Portable Level 2 Tesla EV Charger

  • Plugs into a NEMA 14-50 outlet for up to 40 amps of fast charging (36 miles per hour). Available with or without Wi-Fi for flexible app control.

• Home Level 2 Charging (Hardwired or Plug-In Hybrid)

  • Lectron V-BOX Pro Tesla NACS Home Charger

  • Delivers up to 48 amps when hardwired or 40 amps via NEMA 14-50 outlet. Wi-Fi-enabled with full app control, multiple amp settings, and a complimentary NACS mount.

Explore our collection of Tesla chargers for both portable and home installation options.

For J1772 EV Owners

• Portable Level 1 Charging (Plug-In)

  • Lectron Portable Level 1 J1772 EV Charger (Wi-Fi)

  • Works with all J1772 EVs using a NEMA 5-15 outlet. Wi-Fi-enabled for smart scheduling and monitoring. Compact and easy to carry with a durable case.

• Portable Level 2 Charging (Plug-In)

  • Lectron Portable Level 2 J1772 EV Charger

  • Connects to a NEMA 14-50 outlet, delivering up to 40 amps for fast charging. Wi-Fi version available for app control, non-Wi-Fi version offers LED monitoring.

• Home Level 2 Charging (Hardwired or Plug-In Hybrid)

  • Lectron V-BOX Pro J1772 EV Charger

  • A versatile charging station with both hardwire installation (48A) or NEMA outlet setup (40A). Wi-Fi-enabled, includes real-time app control, and comes with a J-Hook mount for cable organization.

Browse our full range of J1772 Chargers to find the best fit for your home charging needs.

FAQs

• Is it cheaper to charge an EV at home or charging station?

  Charging at home is almost always cheaper. Public charging stations often charge per kWh at higher rates, while home charging lets you take advantage of lower utility rates or off-peak pricing.

• What is the installation process for a hardwired EV charger compared to a plug-in charger?

  A hardwired installation involves connecting the charger directly to the main panel through wiring and a junction box. A plug-in model requires installing a NEMA outlet that the charger plugs into.

• Are hardwired EV chargers safer than plug-in chargers?

  Yes. Hardwired EV chargers eliminate the outlet connection, reducing risks of wear, nuisance tripping, and overheating. However, both are safe when installed by a professional electrician with necessary safeguards like a ground fault circuit interrupter.

• Which type of EV charger lasts longer: hardwired or plug-in?

  A hardwired charger usually lasts longer because it avoids outlet wear. Plug-in chargers may need outlet replacements over time.

• Which is better for home charging: a hardwired or plug-in EV charger?

  It depends:

  • Choose hardwired if you want maximum charging speed, durability, and a permanent solution.

  • Choose a plug-in if you value flexibility, portability, and future-proofing.

• What are the amperage and voltage differences between hardwired and plug-in EV chargers?

  • Hardwired chargers: up to 48 amps.

  • Plug-in chargers: capped at 40 amps on a 50A NEMA outlet. Both run on 240V.

• What electrical code requirements apply to hardwired and plug-in EV chargers?

  The National Electrical Code (NEC) requires chargers to be installed on dedicated circuits. Plug-in models need GFCI protection and may require additional safeguards.

• Do I need a permit to install a hardwired EV charger or a plug-in model?

  Yes. Most jurisdictions require permits for both types. A licensed electrician will handle permitting as part of a professional installation.
