How do I find compatible stations or automakers?

Check automaker updates or maps at tesla.com/NACS, and add your vehicle details to the Tesla app to view over 25,000 accessible Supercharger stalls. In the app, select your vehicle to make finding compatible locations easy. Non-Tesla EV drivers may also need the Tesla app to initiate charging at supported stations. Keep your purchase documents for warranty support. Contact support if you need help with warranty service.

What can I do with this adapter?

It enables CCS1-equipped EVs to utilize compatible Tesla Supercharger stations for high-voltage DC fast charging, which is especially useful on the road. In the Tesla app, users can select their vehicle details to easily view accessible Supercharger stalls, and non-Tesla EV drivers must use the Tesla app to initiate charging.

Is it compatible with my vehicle?

It is compatible only with CCS1-equipped EVs that have approved automaker access to the Tesla Supercharger network.

Which chargers can I use?

Supported V3 and V4 Tesla Superchargers. It will not work with older V2 Superchargers, nor will it work with Level 1 or Level 2 AC chargers (Tesla Wall Connectors, Destination Chargers, or Mobile Connectors).

Will it overheat in hot weather?

In very hot conditions, the adapter’s built-in safety system may reduce or temporarily pause charging to prevent overheating. If this happens, disconnect the adapter and allow both the cable and adapter to cool for around 30 minutes before using them again, since actual speed also depends on battery state of charge, temperature, overall charging conditions, and how long you’ve been at the station. After a heat-related pause, it can be difficult to remove the Tesla connector from the adapter if you pull everything out at once, so separate them carefully. Tesla Supercharger fees typically range from $0.35 to $0.60 per kWh.

Yes, it is UL 2252 certified and tested by SGS. (Note: Tesla does not officially guarantee third-party adapter compatibility.)

How do I activate the station if plug-and-charge fails?

Start the session manually using the Tesla app or your automaker's recommended app.

What if the Supercharger cord is too short?

Park at an end-row or wider stall to get closer to the dispenser without blocking others. If it still does not reach safely, use a different stall or location.

Can I use it in Canada?

Yes, it is fully supported at compatible V3/V4 Superchargers across both the US and Canada.

What safety features are included?

It features advanced thermal management, a durable housing, and an automatic internal dual-locking mechanism (interlock) on both the NACS and CCS1 connections to prevent accidental removal during high-voltage charging.

How is it different from the Vortex Plug?

The Vortex Plus includes the automaker-approved automatic interlock mechanism and carries official UL 2252 certification by SGS.

What warranty duration is provided with the Vortex Plus adapter?

The Lectron Vortex Plus comes with a standard 2-Year Manufacturer Warranty covering defects in materials and workmanship, ensuring reliable, long-term high-power DC fast charging. Keep your purchase documents and contact support if you need warranty assistance. The design is intended to minimize charging issues during repeated, high-frequency use across supported CCS1 vehicles.

Is this adapter suitable for fleet or commercial use across multiple vehicles?

Yes. Built with a rugged thermoplastic body, UL 2252 certification, and an automatic dual interlock, this DC adapter for NACS chargers is designed for heavy, high-frequency fleet use across CCS1 electric vehicles.

How durable are the charging pins after repeated high-power DC fast charging sessions?

Highly durable. It uses nickel-plated, solid copper alloy contacts engineered to resist wear, friction, and electrical arcing over thousands of fast-charging cycles for a safe NACS DC charging process. The adapter features an IP67 Ingress Protection rating for superior dust tightness and water resistance during outdoor fast-charging sessions.

Will this adapter charge reliably on 800V architecture vehicles like the Hyundai Ioniq 5 or Kia EV6?

Yes. Rated for up to 1,000V DC and 500A, this NACS to CCS1 adapter is fully compatible with 800V vehicles, provided your car has approved Supercharger access through its automaker. It works perfectly when that compatibility is in place, allowing Hyundai Ioniq 5, Kia EV6, Genesis GV60, Porsche Taycan, Rivian models, and more to safely charge at Tesla Superchargers. Charging speed will depend on your EV's capacity and the Supercharger generation, but charge rate can still be a key advantage for quick top-ups, with some drivers seeing around 96 kWh at a V3 Supercharger.

Which automaker brands and vehicle models work with this adapter?

The adapter works with CCS1 electric vehicles from automakers with confirmed Tesla Supercharger network access. It expands charging options by giving non-Tesla EVs a convenient way to use Tesla DC fast charging, as long as the adapter matches the car and that model has approved Supercharger access. NACS charging here is primarily for DC fast charging rather than AC Level 1 or Level 2, while CCS features a larger connector with separate AC and DC charging pins. Supported brands include Ford (Mustang Mach-E, F-150 Lightning), GM (Chevrolet, Cadillac, GMC), Rivian (R1T, R1S), Hyundai (Ioniq 5, Ioniq 6), Kia (EV6, EV9), Genesis (GV60), and other manufacturers approved for North American Charging Standard (NACS / SAE J3400) network access.

Does this adapter work at other public charging networks like Electrify America or EVgo, or only at Tesla Superchargers?

Only at Tesla Superchargers (V3 and V4). Networks like Electrify America, EVgo, and ChargePoint already use native CCS1 (Combined Charging System) cables, so no adapter is needed; CCS has a larger connector with separate AC and DC pins, while NACS is used here for DC fast charging access rather than AC Level 1 or Level 2. That makes this adapter a convenient way to expand fast-charging charging options at compatible Tesla sites, not a way to use other CCS-equipped networks.

Will using this adapter void my vehicle's manufacturer warranty?

No. Under the Magnuson-Moss Warranty Act, manufacturers cannot void your warranty for using an aftermarket adapter unless it directly causes damage. The Vortex Plus is UL 2252 certified to meet rigorous safety and thermal standards.

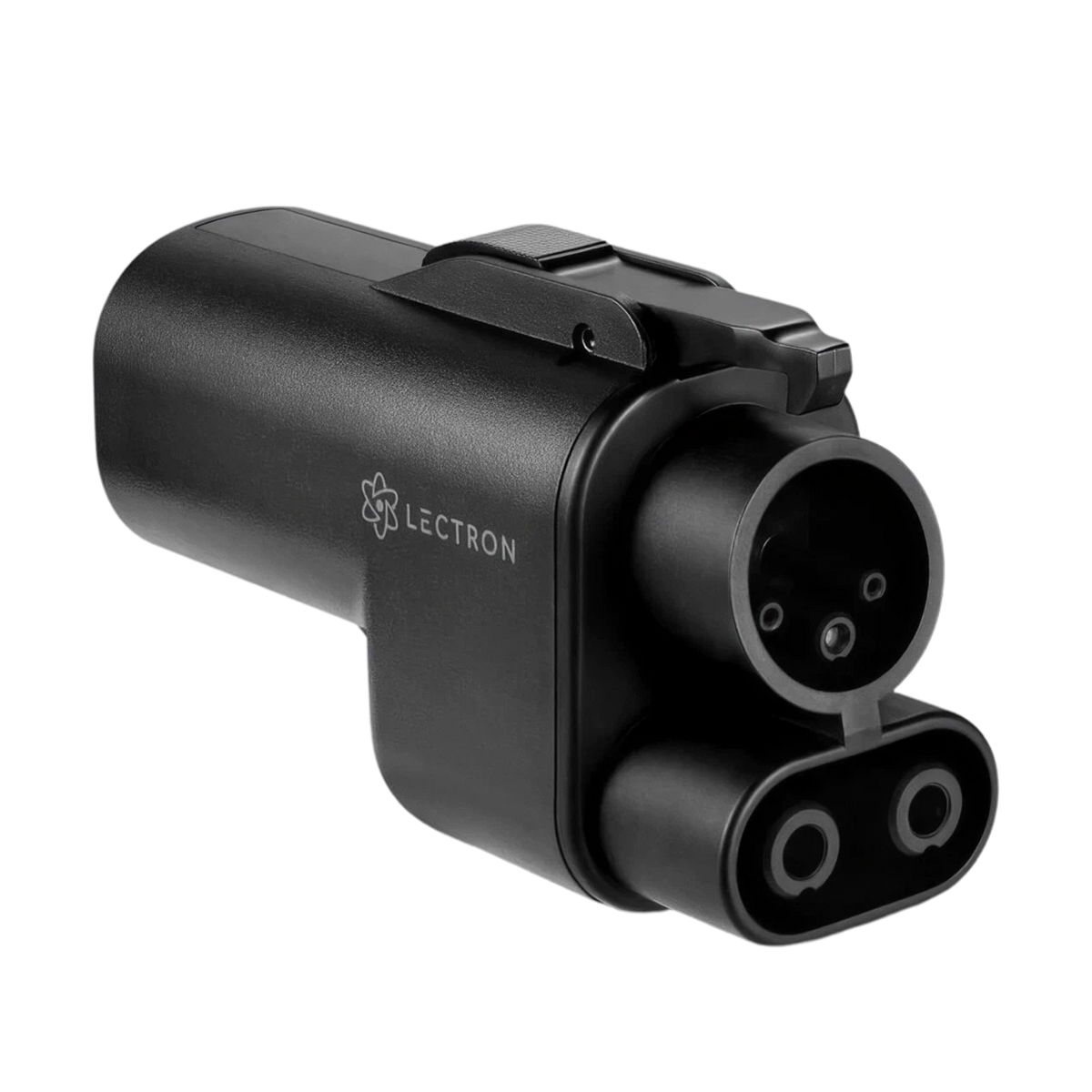

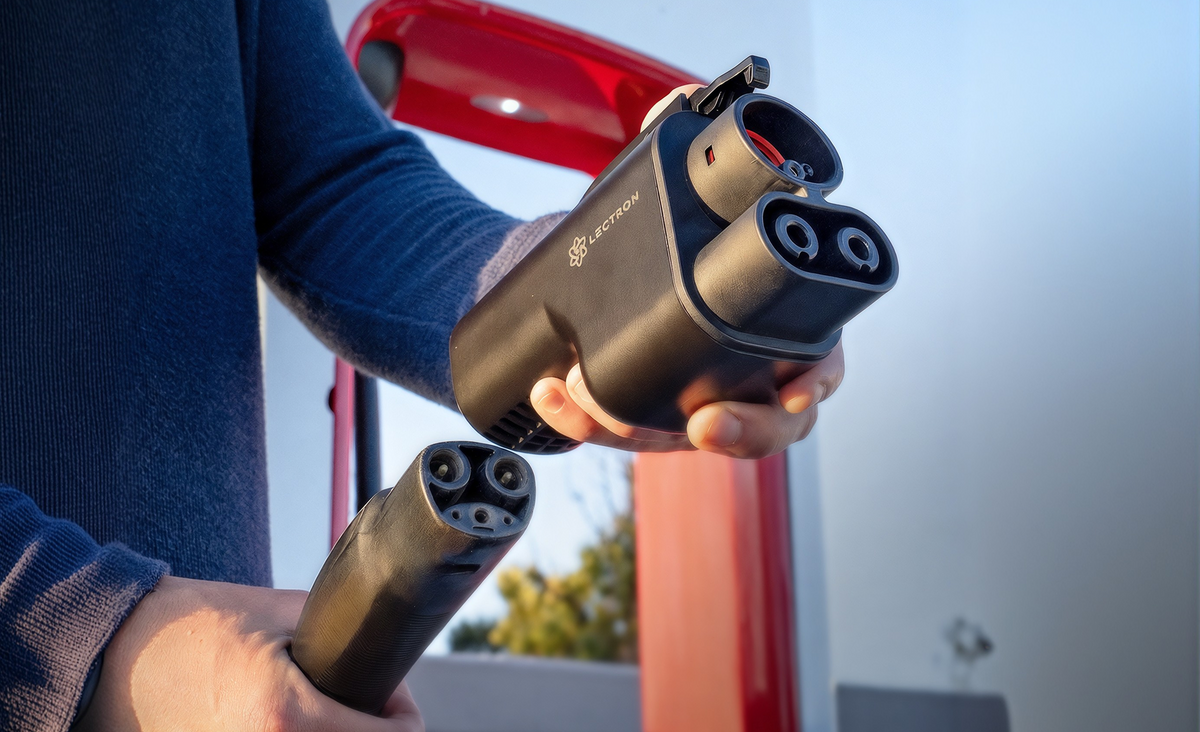

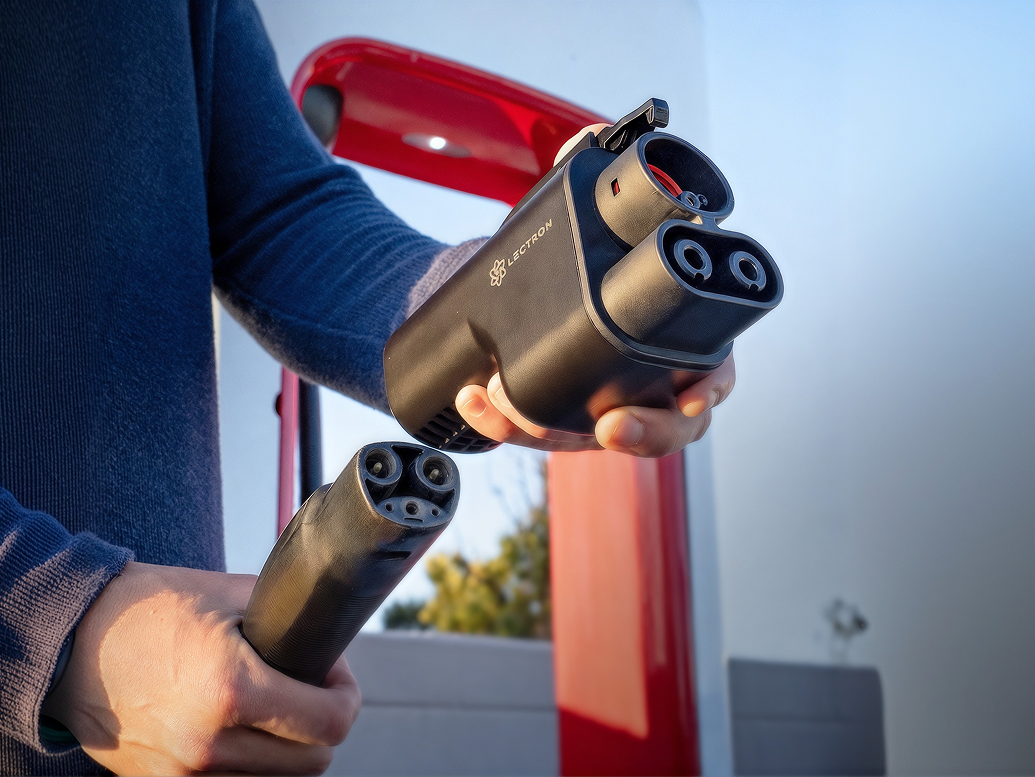

LECTRON VORTEX PLUS NACS TO CCS ADAPTER

Unlock 25,000+ Tesla Superchargers

$184.99

$219.99

Save 16%

UL 2252 Certified · 500A / 1,000V · Automaker-Approved

Lectron NACS to CCS Adapter with Interlock | Vortex Plus | 500A | 1,000V | UL 2252 Certified | Compatible with Tesla Superchargers

$184.99

$219.99

2,000,000+ EV owners trust Lectron · 97% would recommend

Ships in 1–2 days
30-day returns
Secure checkout
2-Year Warranty

Compatible with
CCS EVs

25,000+ Tesla
Superchargers

Up to 500 kW
DC Fast Charging

UL 2252 Safety Certified

IP67 Weatherproof

750,000+
Vortex Plus Shipped

Automakers with Supercharger Access:

Acura • Audi • BMW • Cadillac • Chevrolet • Ford • GM • Genesis • GMC • Honda • Hyundai • JLR • Kia • Lucid • Mercedes-Benz • MINI • Nissan • Polestar • Porsche • Rivian • Stellantis • Subaru • Toyota • Volkswagen • Volvo

Find a Supercharger

Select a compatible Supercharger and start the charging session via the Tesla app or your vehicle.

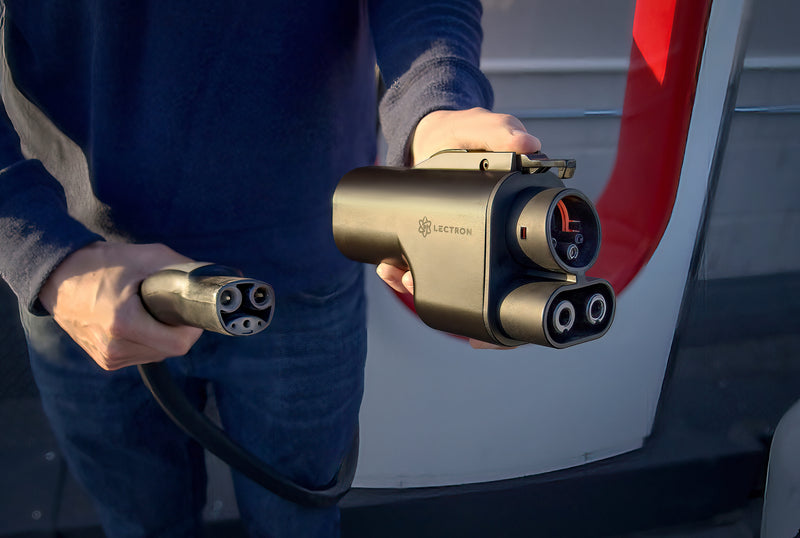

Connect Vortex Plus

Insert the Supercharger’s NACS connector into the Vortex Plus, then connect the adapter to your vehicle’s CCS1 port.

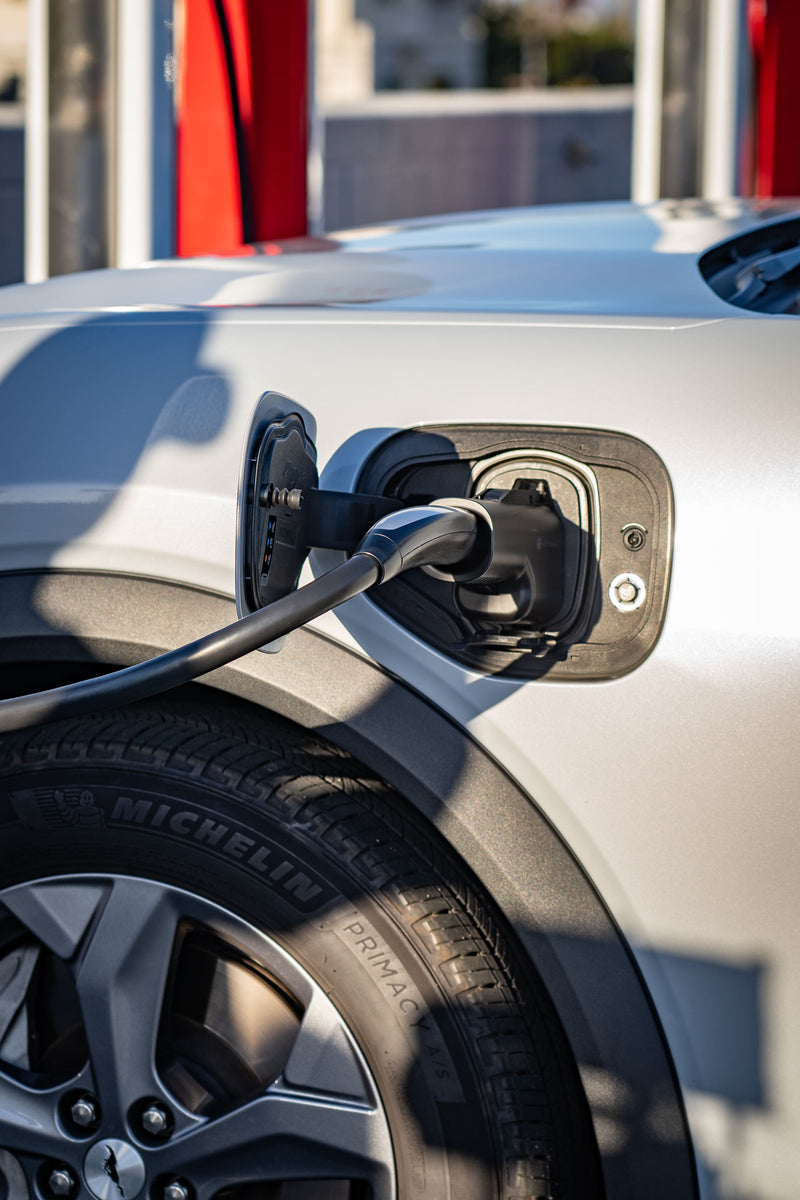

Start Charging

Confirm charging has started on your vehicle display.

real drivers. supercharged.

750,000+ Vortex Plus Customers

Youtube

Tom Moloughney

@StateOfChargeWithTomMoloughney • 163K subscribers

Instagram

fire_capt_steve

@firecaptsteve · 18.3k followers

Instagram

Jeff McAdam

@jeffmcadamtv · 33.8k followers

Youtube

Auto Buyers Guide | Alex on Autos

@AAutoBuyersGuide · 1.07M subscribers

Youtube

Tom Voelk

@DrivenCarReviews•213K subscribers

YOUTUBE

AVERAGE JOE

@AVERAGE_JOE • 72.1K subscribers

YOUTUBE

Adam's Everything EV

@Aslash304 • 18.9K subscribers

Youtube

EV Motoring

@EVMotoring • 7.38K subscribers

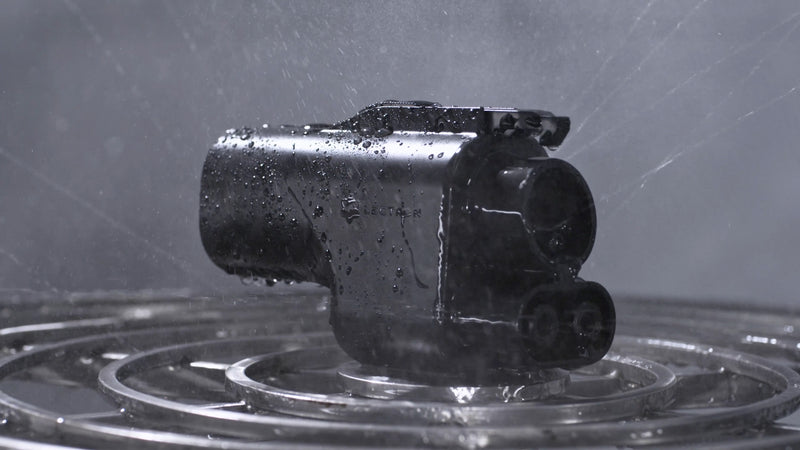

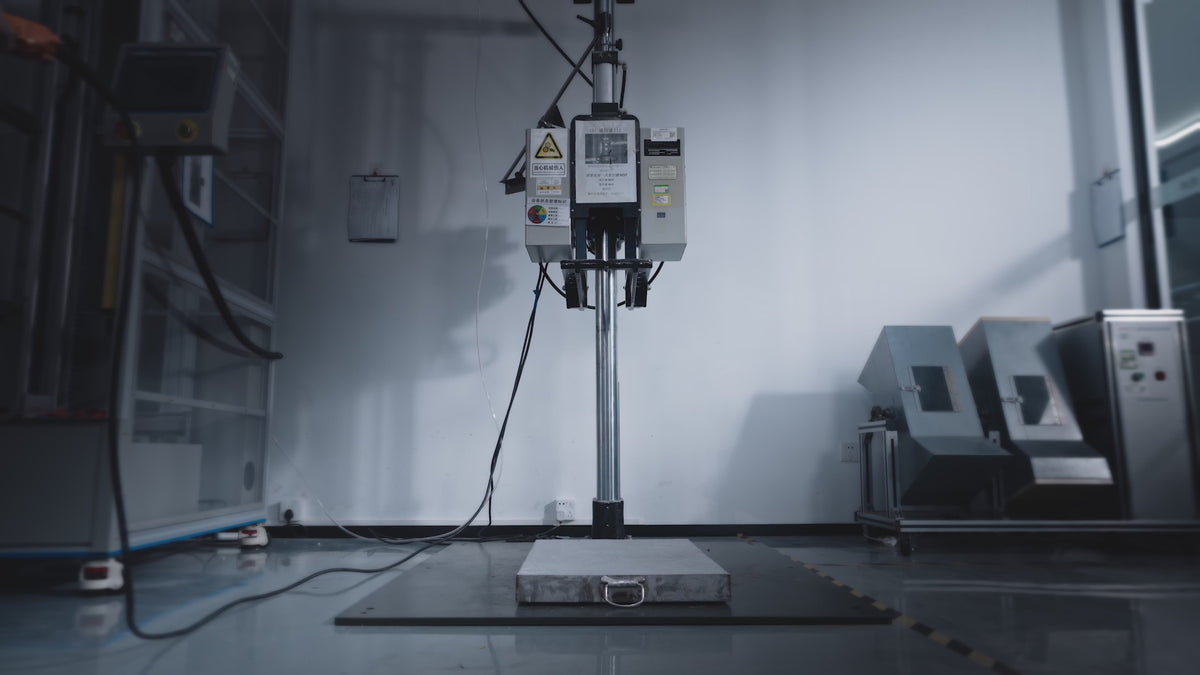

UL 2252 Certified

Independently tested

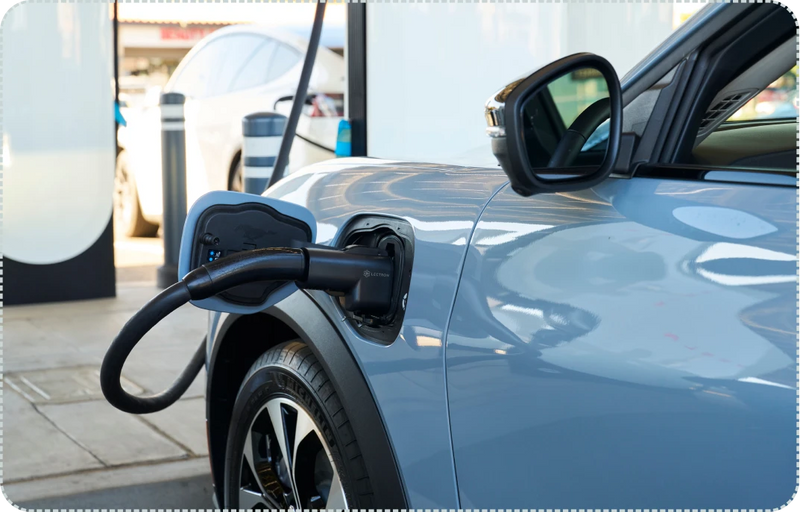

Built for High-Power Fast Charging

500A / 1,000V Rated

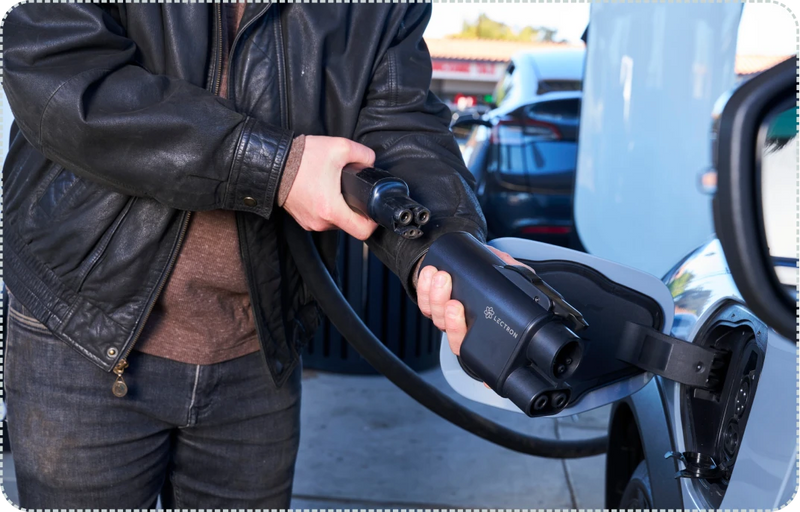

Dual Interlock

Secures at both ends

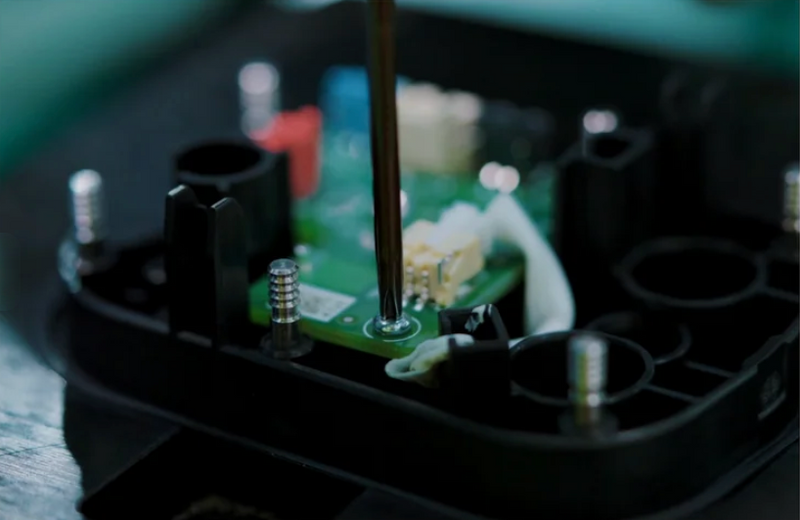

Protection Against Overheating

Active Thermal Protection

Rated Current 500A DC

Rated Voltage 1,000V DC

Max. Power Up to 500 kW

Charger Connector NACS (SAE J3400)

Vehicle Connector CCS1

Weatherproof Rating IP67

Operating Temperature −22°F to 122°F

Weight 2 lbs

Materials PC / PA66 / Copper

Safety Certification UL 2252

Warranty 2 Years

Rated Current 500A DC

Rated Voltage 1,000V DC

Max. Power Up to 500 kW

Charger Connector NACS (SAE J3400)

Vehicle Connector CCS1

Weatherproof Rating IP67

Operating Temperature −22°F to 122°F

Weight 2 lbs

Materials PC / PA66 / Copper

Safety Certification UL 2252

Warranty 2 Years

Lectron Vortex Plus | NACS to CCS Adapter with Interlock | 500A | 1,000V

$184.99

Lectron Tesla (NACS) to J1772 EV Adapter | 240V | 80A | UL 2252 Certified

+$149.99

Save: $84.99

Is your EV Supercharger ready?

Supported EVs: CCS1-equipped EVs approved for Tesla Supercharger access

Supported Stations: Tesla V3 and V4 Superchargers (DC Fast Charging)

Not Supported: Tesla or other NACS/J3400-equipped EVs, V2 Superchargers, or AC Level 1/2 chargers including Wall Connectors and Destination Chargers

Not sure? Check with our team or your automaker to confirm your vehicle’s Supercharger access.

About the product

Is Vortex Plus compatible with my EV?

Vortex Plus works with CCS1-equipped EVs whose manufacturers have approved access to the Tesla Supercharger network. Check your vehicle manufacturer's latest guidance or add your vehicle to the Tesla app to confirm access.

Which Tesla Superchargers can I use?

Vortex Plus supports compatible Tesla V3 and V4 Superchargers. It does not support V2 Superchargers or Tesla AC chargers such as Wall Connectors and Destination Chargers.

How fast can it charge?

Vortex Plus is rated for up to 500A and 1,000V DC. Actual charging speed depends on your vehicle, battery state, temperature and the Supercharger's available output.

Does it work with AC charging?

No. Vortex Plus is designed for DC fast charging at compatible Tesla Superchargers. For Tesla AC chargers, use a compatible NACS to J1772 adapter.

What happens if the adapter gets too hot?

Built-in thermal protection monitors temperature while charging and can automatically reduce or pause power if required.

Is it UL 2252 certified?

Yes. Vortex Plus is certified to UL 2252 by SGS.

Do I need the Tesla app?

Some vehicles and charging locations may require the Tesla app to locate compatible Superchargers or start a charging session.

Unlock 25,000+ Tesla Superchargers

Take more fast-charging options with you on every drive.

Lectron Vortex Plus · $184.99

LECTRON VORTEX PLUS NACS TO CCS ADAPTER

One adapter. Access North America's largest fast-charging network.

Fast Charge up to 150 Miles in just 15 minutes

Find a Supercharger

Connect Vortex Plus

Start Charging

750,000+ Vortex Plus Customers

Trusted by Over 15 Global Automakers

UL 2252 Certified

Built for High-Power Fast Charging

Dual Interlock

Protection Against Overheating

NORTH AMERICA'S BEST-SELLING SUPERCHARGER ADAPTER

Reviewed & Recommended By

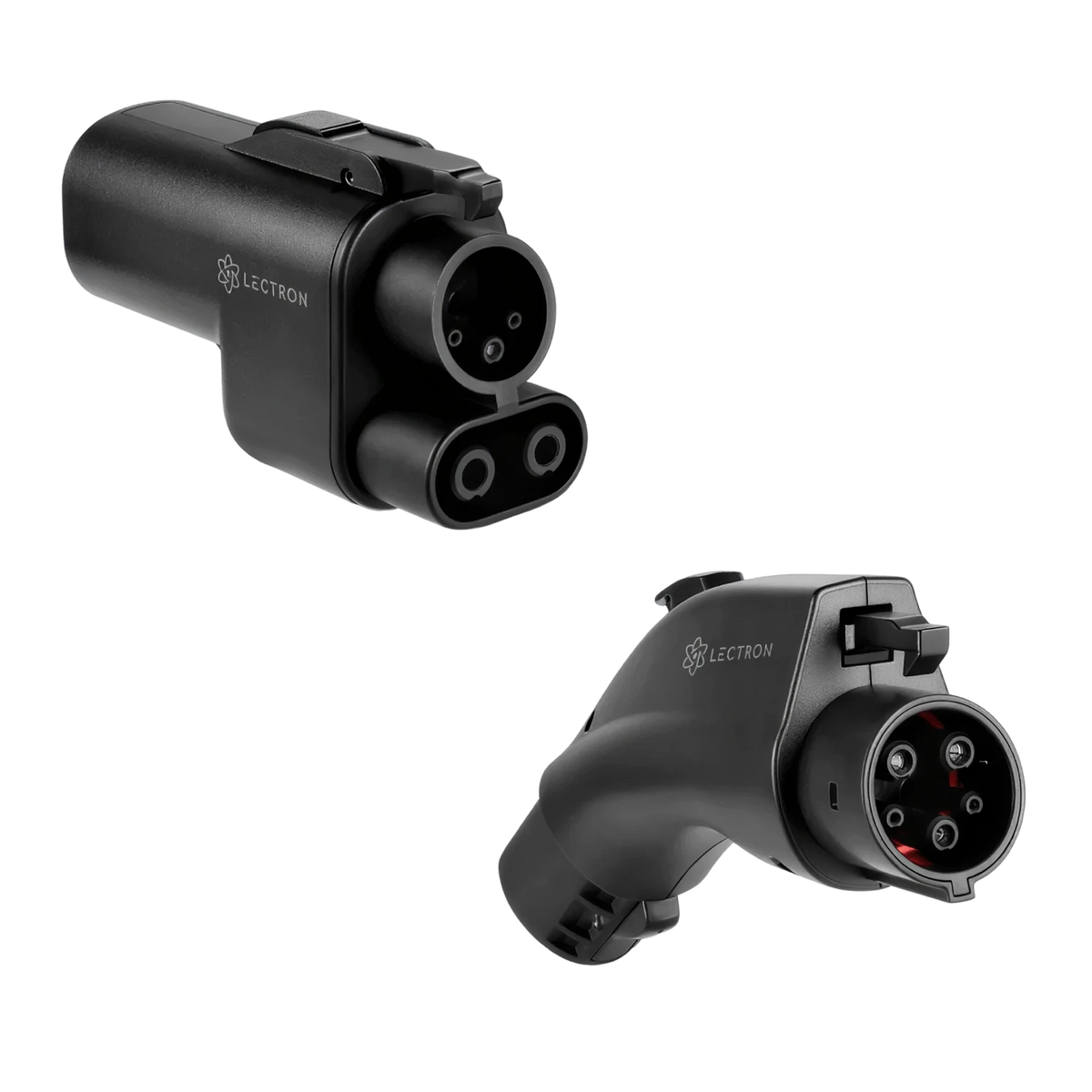

TESLA DC + AC CHARGING, COVERED.

Is your EV Supercharger ready?
