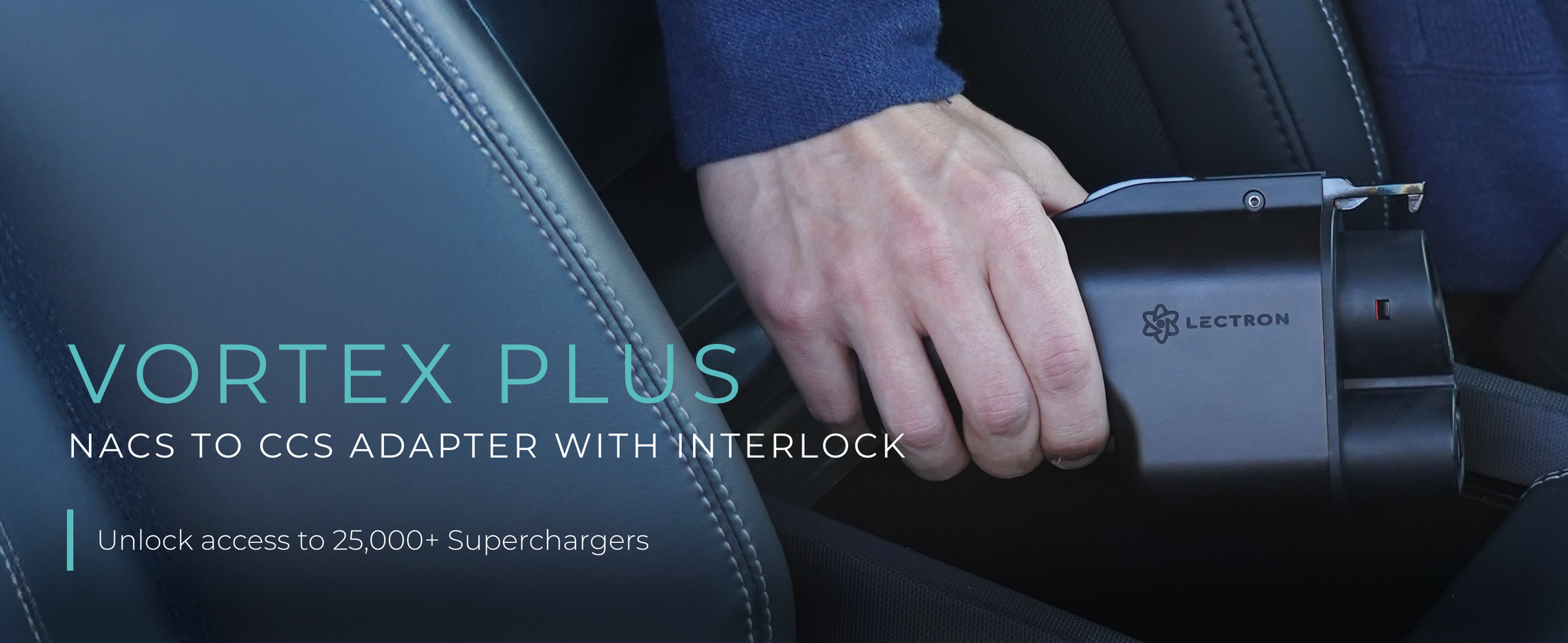

Lectron NACS to CCS Adapter with Interlock | Vortex Plus | 500A | 1,000V | UL 2252 Certified | Compatible with Tesla Superchargers

  • CCS EVs
  • 25,000+ Tesla Superchargers

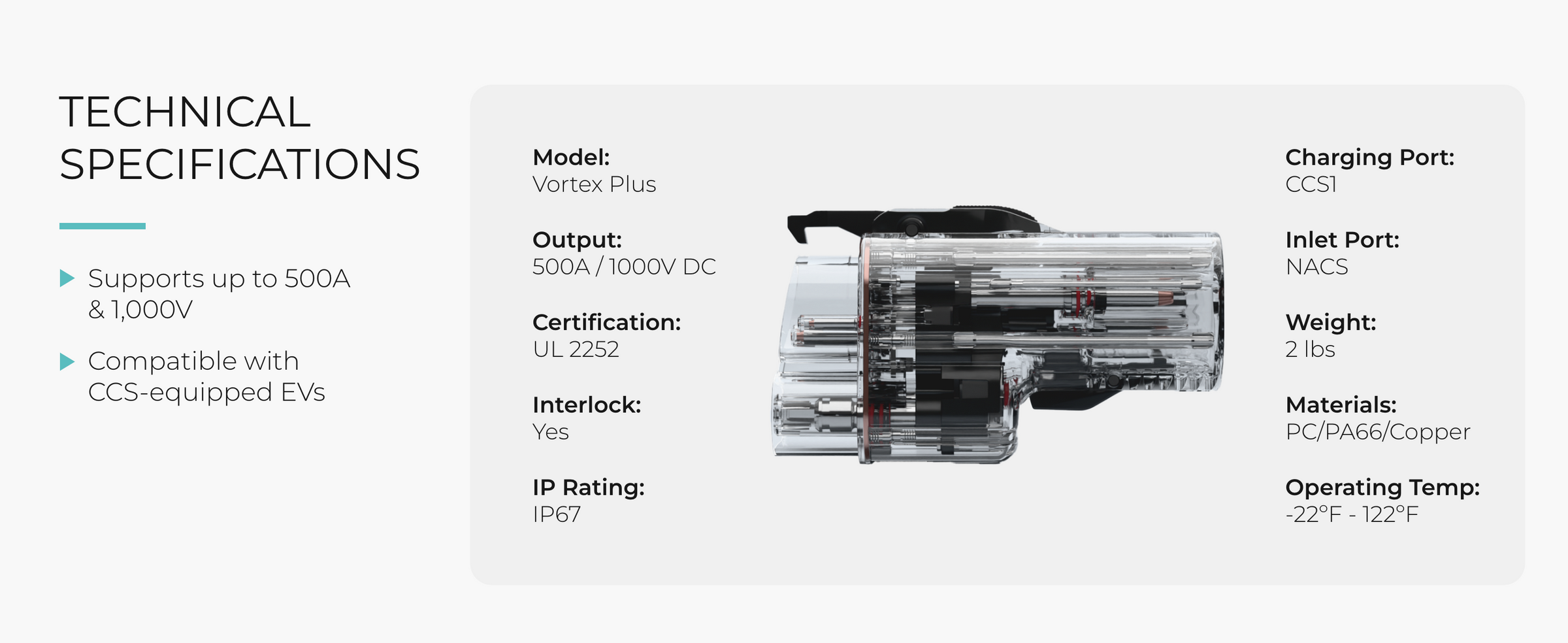

  • 500A / 1,000V / 500 kW
  • UL2252 Certified
  • Automaker-approved Interlock
Prix d'origine $259.99 - Prix d'origine $259.99
Prix d'origine
$259.99 With Free Shipping
$259.99 - $259.99
Prix actuel $259.99 With Free Shipping
1 - 2 day shipping
30-Day Returns
Secure Checkout

*SHIPS WITHIN 1 - 2 WORKING DAYS

ACCESS TESLA SUPERCHARGERS NATIONWIDE - Unlock 25,000+ V3 and V4 Tesla Superchargers. This NACS to CCS adapter enables non-Tesla EVs with Supercharger access to easily connect to the Tesla fast charging network

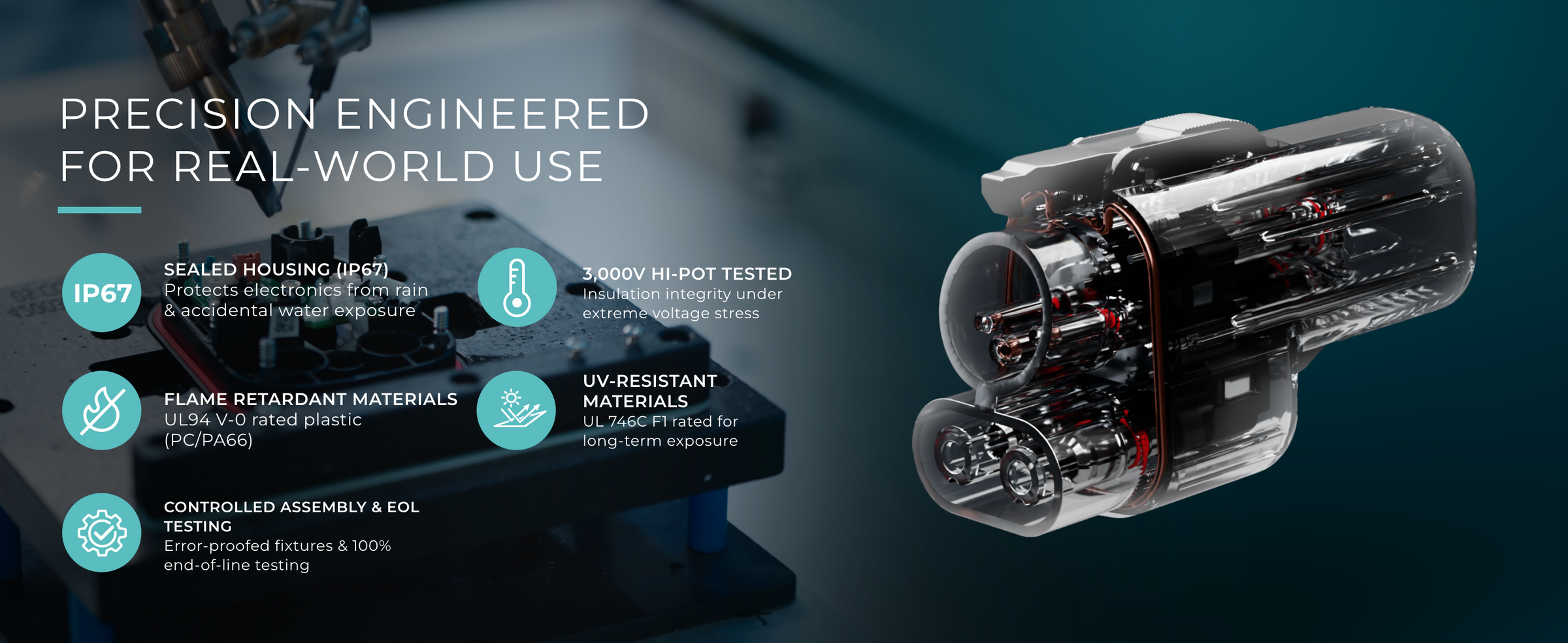

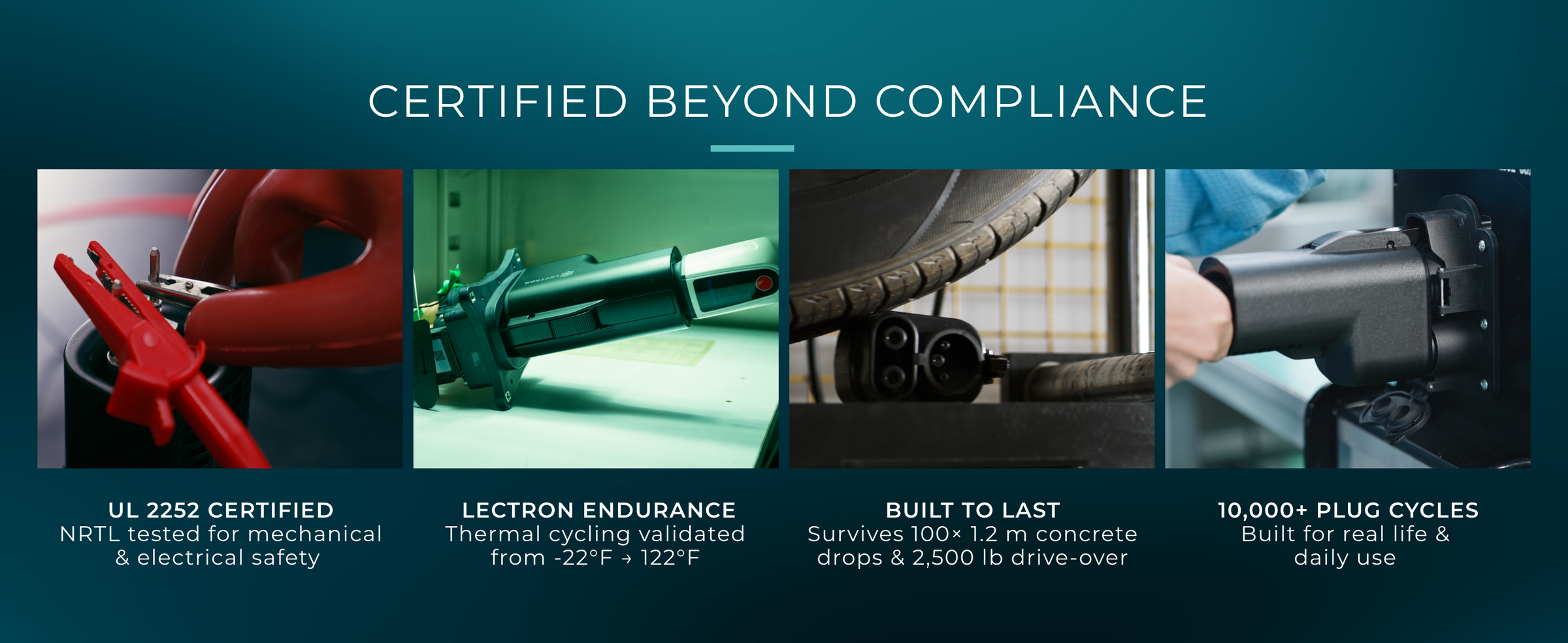

FIRST UL 2252 CERTIFIED ADAPTER - The Vortex Plus is the first publicly available NACS to CCS adapter certified under UL 2252. Market-leading safety, thermal and mechanical performance.

SECURE INTERLOCK DESIGN - Features a built-in interlock mechanism to help ensure a secure connection during high-voltage DC fast charging. Our SAE J3400 (NACS/Tesla) to CCS adapter is built to last for safe high-speed charging.

UP TO 150 MILES IN 15 MINUTES – 500A / 1000V RATED - Lightning-fast charging performance. Charge up to 150 miles in as little as 15 minutes with the Lectron Vortex Plus. Charging rates vary based on the Tesla Supercharger generation and your vehicle’s specifications

COMPATIBLE WITH SUPPORTED CCS1 EVs - Our NACS to CCS Adapter is designed exclusively for CCS1 EVs that have Supercharger access through their automaker. Not compatible with Tesla vehicles or AC charging stations

Frequently Asked Questions


How do I find compatible stations or automakers?

Check automaker updates or maps at tesla.com/NACS, and add your vehicle details to the Tesla app to view over 25,000 accessible Supercharger stalls.


What can I do with this adapter?

It enables CCS1-equipped EVs to utilize compatible Tesla Supercharger stations for high-voltage DC fast charging.


Is it compatible with my vehicle?

It is compatible only with CCS1-equipped EVs that have approved automaker access to the Tesla Supercharger network.


Which chargers can I use?

Supported V3 and V4 Tesla Superchargers. It will not work with older V2 Superchargers, nor will it work with Level 1 or Level 2 AC chargers (Tesla Wall Connectors, Destination Chargers, or Mobile Connectors).


How fast can it charge?

Supports up to 500A and 1,000V DC. Actual speed depends on your vehicle's capabilities, battery state of charge, temperature, and Supercharger station output.


Will it overheat in hot weather?

In very hot conditions, the adapter’s built-in safety system may reduce or temporarily pause charging to prevent overheating. If this happens, disconnect the adapter and allow both the cable and adapter to cool for around 30 minutes before using them again.


Is it UL certified?

Yes, it is UL 2252 certified and tested by SGS. (Note: Tesla does not officially guarantee third-party adapter compatibility.)


How do I activate the station if plug-and-charge fails?

Start the session manually using the Tesla app or your automaker's recommended app.


What if the Supercharger cord is too short?

Park at an end-row or wider stall to get closer to the dispenser without blocking others. If it still does not reach safely, use a different stall or location.


Can I use it in Canada?

Yes, it is fully supported at compatible V3/V4 Superchargers across both the US and Canada.

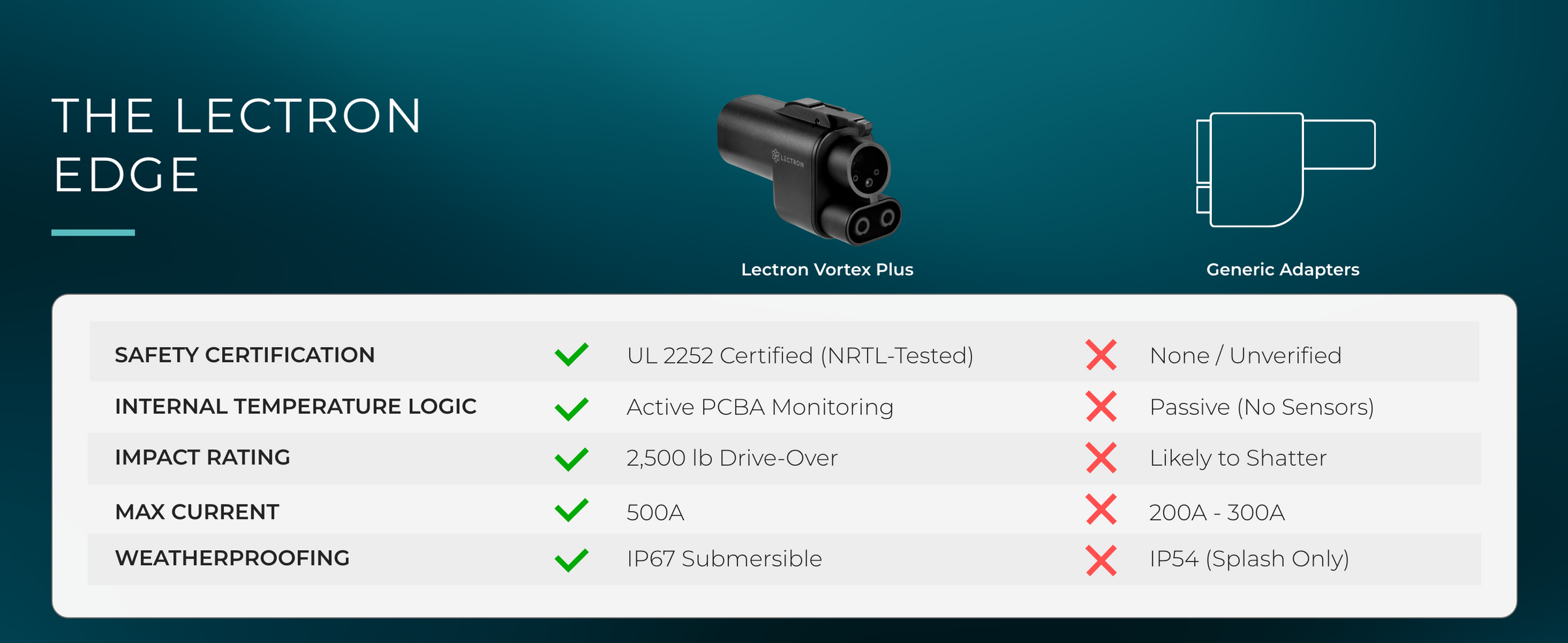

What safety features are included?

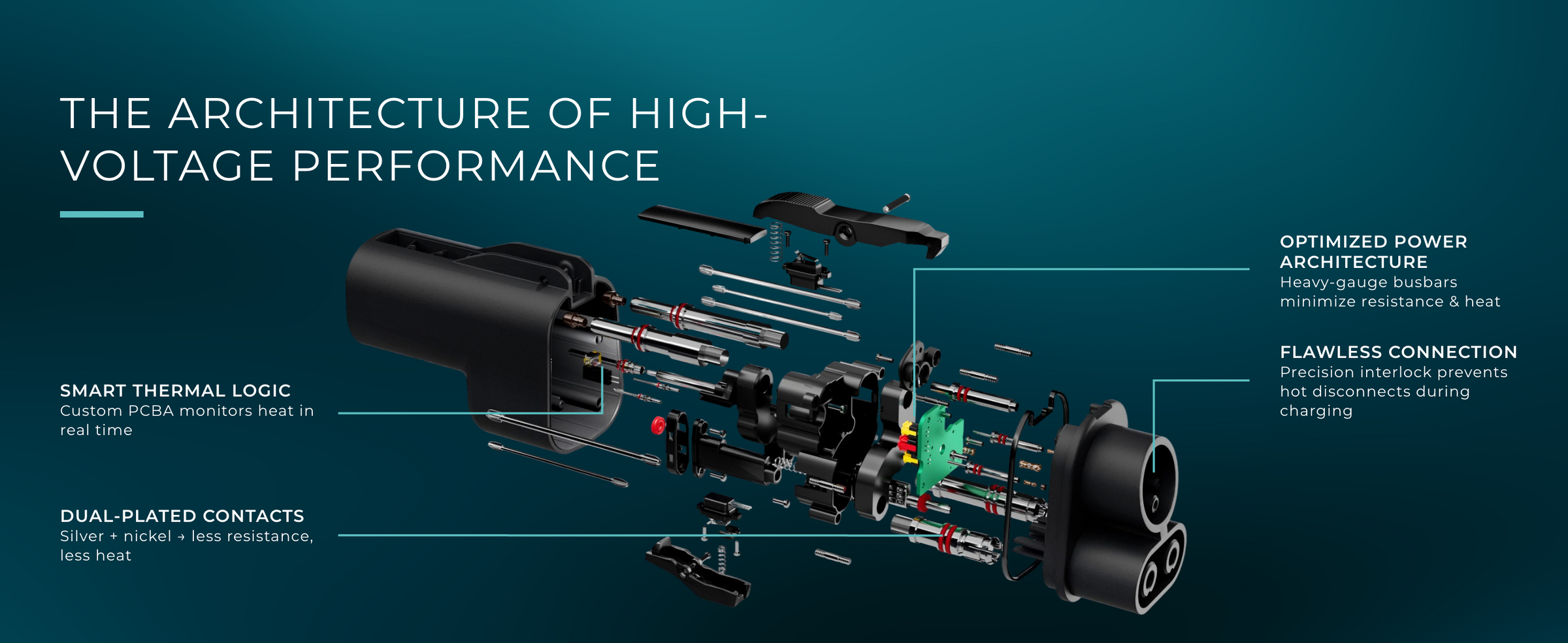

It features advanced thermal management, durable housing, and an automatic internal dual-locking mechanism (interlock) on both the NACS and CCS1 connections to prevent accidental removal during high-voltage charging.


How is it different from the Vortex Plug?

The Vortex Plus includes the automaker-approved automatic interlock mechanism and carries official UL 2252 certification by SGS.
