Understanding NEMA 14-50 for EV Charging

A NEMA 14-50 charger is a Level 2 EV charger that uses a 240-volt, 50-amp four-prong outlet to deliver much faster home charging—often around 25 to 40 miles of range per hour—than a standard wall plug. Originally designed for high-demand household appliances like an electric range or RV, the NEMA 14-50 plug has become a common home-charging standard across North America for EV owners, prospective drivers, homeowners planning a garage setup, and electricians evaluating a safe, code-compliant installation.

Installing a proper NEMA 14-50 setup lets most electric vehicles recharge overnight while keeping upfront cost lower than many hardwired options, which is why it remains a practical choice for reliable daily charging and lower running costs versus gas. Below, we break down the outlet’s electrical specs, charging-speed expectations, portable vs. hardwired charger options, code and safety requirements, EV fit considerations, and the maintenance and long-term value of a NEMA 14-50 charging setup.

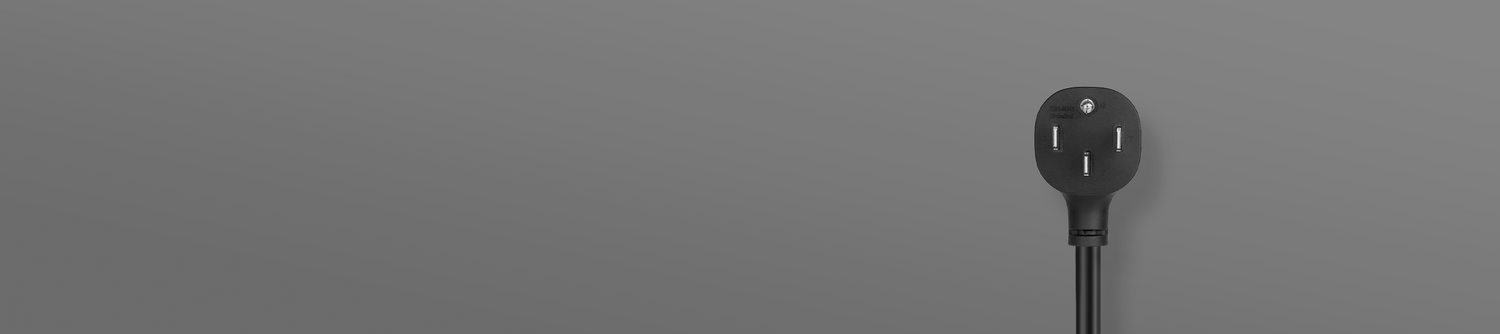

Technical Specs and 4-Prong Configuration

The core specs of a NEMA 14-50 receptacle center around its heavy-duty four-prong design rated for 125/250V AC service:

• Two Hot Wires: Supply the primary 240V voltage necessary for fast charging.

• Neutral Wire: Completes the electrical circuit and allows the outlet to handle both 120V and 240V loads safely.

• Earth Ground: Provides a crucial path for fault currents, ensuring user safety during operation.

The presence of a dedicated neutral wire represents a key difference in safety reasons and versatility when compared to older 3-prong plugs (like the NEMA 6-50), allowing the NEMA 14-50 plug to power both a vehicle charger and other heavy equipment cleanly.

Level 1 vs. Level 2 Charging Speeds

Standard Level 1 charging relies on a standard 120V household outlet, which delivers roughly 1.4 kW of power and adds only 3 to 5 miles of range per hour, often requiring over 24 hours to charge a depleted battery. Upgrading to Level 2 home charging via a NEMA 14-50 connection dramatically increases charging speed. Supplying between 7.7 kW and 9.6 kW of power, a Level 2 NEMA 14-50 charger adds 25 to 40 miles of range per hour, enabling you to fully recharge your car in under six hours overnight.

Choosing Your NEMA 14-50 Equipment

Portable Charger vs. Hardwired Installation

When deciding to purchase a NEMA 14-50 charger, EV drivers must evaluate two primary hardware options:

• Plug-In Portability: A portable charger plugs directly into an existing NEMA 14-50 outlet. This offers total mobility, making it easy to plug in at home or disconnect the cable to take on road trips or use at RV parks equipped with 50-amp receptacles.

• Hardwired Permanence: A hardwired installation permanently attaches the EV charger directly to your home's electrical wiring. Hardwiring eliminates the wall plug and socket, removing insertion wear as a potential failure point and allowing for higher continuous amperage (up to 48A on a 60A circuit).

Amperage Limits and the 80% Rule

Under National Electrical Code guidelines, continuous electrical loads, defined as any draw lasting longer than three hours, such as EV charging, must not exceed 80% of the total circuit rating. Because a NEMA 14-50 circuit is rated for a maximum capacity of 50 amps, the maximum continuous draw allowed for a plug-in EV charger is 40 amps (9.6 kW at 240V) to prevent thermal overload and maintain safety.

EV-Rated Receptacles and Heat Ratings

A standard, inexpensive residential outlet built for an electric range is designed for occasional usage, not the sustained, high-amperage heat generated by charging an electric vehicle for hours on end. Using a standard residential outlet for continuous EV loads can lead to terminal overheating, loose contact tension, and dangerous melting. For safe, reliable daily charging, always select a heavy-duty, EV-rated receptacle marked with a 75°C continuous temperature rating and built with reinforced internal brass contacts.

Installation and Safety Guidelines

Electrical Code and Dedicated Circuit Rules

National Electrical Code (NEC) mandates that every NEMA 14-50 outlet installed for EV charging hardware must operate on its own dedicated 50-amp circuit. Sharing a circuit with an electric range, dryer, or other appliance creates severe overcurrent risks, causes nuisance breaker trips, and violates local building safety codes.

Wire Gauge Requirements

Proper, code-compliant installation of a 50-amp NEMA 14-50 circuit requires heavy-duty 6 AWG copper wire. Using undersized wiring (such as 8 AWG or aluminum wire) increases electrical resistance, generates excessive heat in wall cavities, and poses severe fire risks under continuous 40A loads. Furthermore, failure to torque wall outlet screws to the manufacturer's specifications can result in arcing over time.

Hiring a Qualified Electrician

Because high-current wiring carries significant risk, a qualified, licensed electrician should always install your NEMA 14-50 outlet. A professional electrician will calculate your panel's overall electrical capacity, safely run heavy 6 AWG wire from the main breaker panel to your garage, properly torque all connections, and ensure complete compliance with local codes.

Permits and Code Compliance

Securing a municipal building permit and scheduling a final inspection is a critical step during installation. Obtaining a permit ensures your NEMA 14-50 wiring meets strict national and local building safety codes, protecting your property value and ensuring your home insurance coverage remains fully intact.

Consequences of Improper Setup

Attempting a DIY setup or using cheap, non-EV-rated hardware for a NEMA 14-50 circuit can lead to catastrophic failure. Loose wire terminals or undersized receptacles cause extreme thermal degradation, resulting in melted plastic housings, arcing, warped plug blades, shorted circuit breakers, and potential house fires. Beyond safety risks, an unpermitted or improper setup can void your vehicle warranty and invalidate home insurance coverage.

Hardware Options and Market Compatibility

Smart Charger Features

Modern Level 2 EV chargers offer advanced features that go beyond basic power delivery. Equipping your home with a smart EV charger allows you to schedule charging sessions automatically during off-peak utility hours to save money, track real-time energy usage via a mobile app, adjust amperage output, and receive automated diagnostic alerts.

EV Compatibility Across Brands

A NEMA 14-50 charger is compatible with all major electric vehicles sold in North America. Whether your car uses the native NACS (SAE J3400) port or the universal J1772 standard, a NEMA 14-50 power source works with both seamlessly with the right EV adapter:

Lectron NEMA 14-50 Charging Hardware

Lectron designs and manufactures industry-leading NEMA 14-50 charging hardware kept fully in stock for fast delivery:

• Lectron NEXUS Level 2 Charger: Available in both a 40A plug-in NEMA 14-50 model ($399.99) and a 48A hardwired installation model, featuring an IP66 weatherproof housing, a 23-foot cable, and an intuitive LED status bar.

• Lectron Portable Level 2 Charger: A rugged 40A portable charger providing 240V fast charging anywhere a NEMA 14-50 plug is accessible, featuring molded cable strain relief and built-in handle diagnostics.

Comparisons, Maintenance, and Economics

NEMA 14-50 vs NEMA 6-50

The key difference between a NEMA 6-50 socket and a NEMA 14-50 socket comes down to the fourth wire: the neutral line. While a NEMA 6-50 is a 3-prong plug type commonly used for welders and some NEMA 6-20 industrial connectors, the NEMA 14-50 plug incorporates a dedicated neutral wire. This makes the NEMA 14-50 far more versatile for residential EV charging, RV parks, and dual-voltage smart chargers.

Maintenance and Receptacle Wear

Plugs and wall sockets rely on physical spring tension to maintain a tight electrical connection. Frequently plugging and unplugging a heavy-duty portable charger wears down the internal contact blades of the receptacle over time, leading to loose connections and heat buildup. If using a portable charger as your primary home station, leave it continuously plugged into the outlet to preserve connection tension.

Cost and Energy Savings

Powering your electric vehicle at home using a NEMA 14-50 Level 2 charger provides massive financial benefits over gasoline-powered cars. Electricity costs for a typical EV average around $0.04 to $0.05 per mile compared to $0.12+ per mile for gas vehicles, delivering up to 60% in monthly fuel savings while avoiding expensive commercial fast-charging rates.
